Titanium Clad Steel Plate

Titanium Clad Steel Plate

Titanium has superior corrosion resistance and heat resistance. Moreover, its application is expanding rapidly from space to land and from land to sea. Therefore, a titanium steel clad plate is an ideal material to replace pure titanium for a better cost-effectiveness ratio.

Overview

Buy titanium clad plate, titanium clad plate manufacturer, titanium metal plate stockist, low price titanium alloy plate

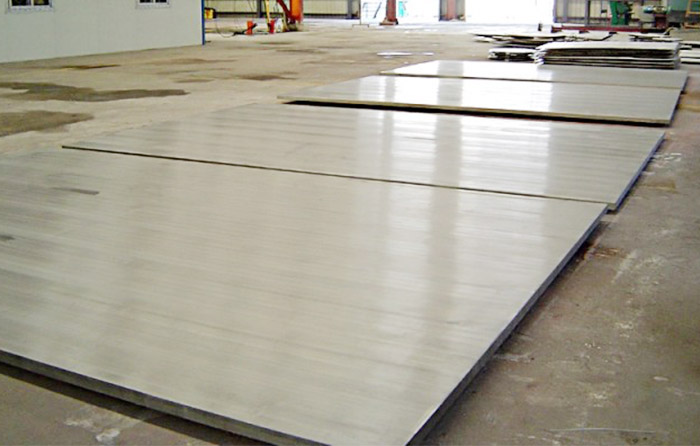

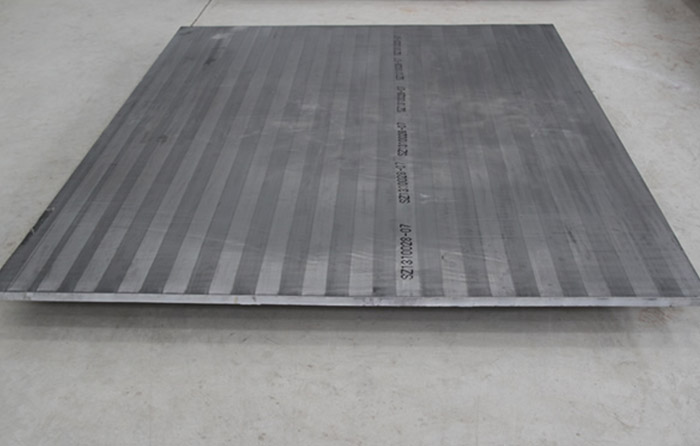

Titanium clad steel plate is a material made by laminating a titanium plate with a steel plate. Titanium clad has excellent corrosion resistance, but is expensive and can be made into composite plates to greatly reduce costs. Usually made by explosive crimping, in recent years began to use the hot rolling method of production.


The joint surface of titanium and steel at high temperatures is prone to the formation of TiC, titanium-iron solid solution phase and intermetallic compounds (TiFe, TiFe2, etc.), causing embrittlement of the steel plate. To prevent embrittlement can be used less than 50ppm carbon content of ultra low carbon steel foil or stainless steel wire mesh as a sandwich material between titanium and steel. The rolling temperature is selected around 850°C to obtain the best jointing performance.


Titanium plate for sale has good cold working, warm working, hot working formability and weldability, and can be cut, welded, expanded, opened and spun into shape, etc. Titanium clad is the material for manufacturing pressure vessels for chemical equipment, seawater heat exchangers, chemical reaction vessels and electrodes used in harsh corrosive media.

Features

Titanium steel clad plate features

Titanium clad plate is a typical metal layer composite material. Usually, they are produced by deformation and bonding: hot/cold rolled bonding or explosion bonding. Titanium composite steel plates obtained the low cost and high strength of the steel with excellent titanium resistance.


Titanium steel clad plate has superior corrosion resistance and heat resistance, so it has better corrosion resistance than stainless steel or copper alloy and titanium in most cases, especially in seawater.


Moreover, titanium sheet/plate application is expanding rapidly from space to land and from land to sea. Therefore, a titanium steel plate is an ideal material to replace pure titanium for a better cost-effectiveness ratio, which features a low cost and higher performance.


Titanium clad has high mechanical properties, and excellent stamping properties and can be welded in various forms, with welded joints up to 90% of the strength of the base metal and good machinability. titanium clad has high corrosion resistance to chlorides, sulfides and ammonia.


Titanium cladding in seawater has higher corrosion resistance than aluminum alloy, stainless steel, and nickel-based alloy is also high.


Titanium cladding is also more resistant to water impact.


China Titanium clad steel plate, Titanium Aluminium Composite Sheet, Professional manufacturer, supplier, specializing in the development and sale of all kinds of metal materials to meet your various needs, to meet the different needs of different customers. Our company is a professional manufacturer of titanium steel composite plate, titanium composite material, professional production of , titanium composite clad, reliable product quality and favorable price, welcome to call us for high quality titanium clad plates for sale!


Why choose Titanium clad steel plate:

Titanium steel plate has been widely used in various chemical reaction vessels and heat exchanger materials because of its excellent corrosion resistance, but its disadvantage is high cost. Especially for the use as structural components, this problem is particularly obvious, And the effective solution is the use of titanium clad steel plate. The combination of titanium and ordinary steel is called titanium clad steel plate. It has the corrosion resistance of titanium and the strength of the ordinary steel plate as the structure. What matters most is that the overall cost can be reduced greatly.


Titanium Clad Steel Plate

Specifications


Product NameTitanium Clad Steel Plate
Cldding Material ScopeTitanium(Gr1, Gr2, Gr3,Gr5, Gr9,Gr7, Gr11, Gr12, etc),Stainless Steel, Non-ferrous metals (aluminum,copper,nickel,zirconium,tantalum)
Titanium Type of the CladTi-steel clad plate,Ti-stainless steel clad plate,Ti-aluminum clad plate,Ti-copper clad plate,Ti-nickel clad plate
TechniqueExplosive welding, Hot rolling
StandardASTMB898,  NB/T47002.3-2010
Overall Thickness8-120mm
Cladding thickness2-15mm
Width3000mm or Customizable
Length8000mm or Customizable
Surface TreatmentPolished
PackageExport sea worthy package + waterproof paper + wooden pallets
DeliveryNormally 10 days after receiving the 30% deposit
PaymentT/T, L/C, DP or Negotiable, For Russia India Market
ApplicationsPetroleum, Petroleum refining, chemical industry, light industry, electrolytic
Aluminium, food, Seawater desalination, Water conservancy
Hydropower, Nuclear energy, Marine, Medical
Aerospace, Environmental protection field


Titanium cladding: Titanium is 30% stronger than steel, but almost 50% lighter. Titanium is 60% heavier than aluminum but twice as strong. Titanium has excellent strength retention at 1,000 degrees Fahrenheit. Titanium is alloyed with aluminum, manganese, iron, molybdenum and other metals to increase strength, withstand high temperatures and reduce the weight of the resulting alloy. The high corrosion resistance of titanium clad is also a valuable property. When exposed to the atmosphere, titanium clad forms a tight and tough oxide film that is resistant to many corrosive materials, especially salt water. Thin titanium clad react slowly with water and air at ambient temperatures. This is because, when exposed to both media, the titanium plate forms a passivated oxide coating or coating to protect the bulk of the metal from further oxidation.


Titanium clad steel content grades

Grade 5 titanium (6AL-4V) is an Alloy Titanium product containing 6% aluminium and 4% vanadium; it is a medium strength product. This grade of titanium is mainly used for airframe and turbine engine components; it is also used for surgical implants. Technical information

Titanium 6AL - 4V ELI is an Titanium clad containing 6% aluminium and 4% vanadium, ELI (Extra Low Clearance).

6AL-2Sn-4Zr-2Mo (6-2-4-2) is a titanium clad containing 6% aluminium, 2% tin, 4% zirconium and 2% molybdenum.

6AL-6V-2Sn (6-6-2) is a titanium clad containing 6% aluminium, 6% vanadium and 2% tin.

5AL-2.5Sn & ELI (5-2.5) is a titanium clad containing 5% aluminium and 2.5% tin. Also available as ELI (Extra Low Insertion Inserts).

8AL-1V-1Mo (8-1-1) is a titanium clad product containing 8% aluminium, 1% molybdenum and 1% vanadium.

15V-3Cr-4AL-3Sn (15-3-3-3) is a titanium clad containing 15% vanadium, 3% chromium, 4% aluminium and 3% tin.


Titanium Clad Steel Sheets specifications

Titanium-clad steel sheets should be manufactured in accordance with ASTM B898. The base metal may be various carbon steel plates manufactured in accordance with ASTM A516, ASTM A515, ASTM A266, ASTM A572, ASTM A709, ASTM A387, ASTM A240, etc. The cladding metal can be ASTM B265 Titanium Gr. 1, Gr. 2, Gr. 3, Gr. 7, Gr. 9, Gr. 12, Gr. 16, etc. The cladding technique can be hot rolled, cold rolled, blast bonded or a combination of them.


Size specifications:

T 0.5-1.0mm x W1000mm x L 2000-3500mm

T 1.0-5.0mm x W1000-1500mm x L 2000-3500mm

T 5.0- 30mm x W1000-2500mm x L 3000-6000mm

T 30- 80mm x W1000mm x L 2000mm

 Size specifications
size(inch)size(mm)
.125"3.18mm
.134"3.40mm
.156"3.96mm
.187"4.75mm
.250"6.35mm
.312"7.92mm
.375"9.53mm
.500"12.7mm
.601"15.9mm
.750"19.1mm
.875"22.2mm
1"25.4mm
1.125"28.6mm
1.250"31.8mm
1.500"38.1mm
1.750"44.5mm
2"50.8mm
2.500"63.5mm
3"76.2mm


Don't see the one you need to be listed below Titanium Clad Steel Plate or other material in a grade, alloy or specification? Please contact us today.



Uses

Titanium Clad Steel Plate Applications

Titanium Clad Plates are used in many applications in the aerospace, defense, medical, industrial and oil and gas industries, heat exchangers, cryogenic engineering, ocean engineering, petrochemical industry, and metallurgical equipment, often for its unique combination of higher strength, lighter weight, resistance to corrosion and other resistances, biocompatibility, and performance at higher temperatures.

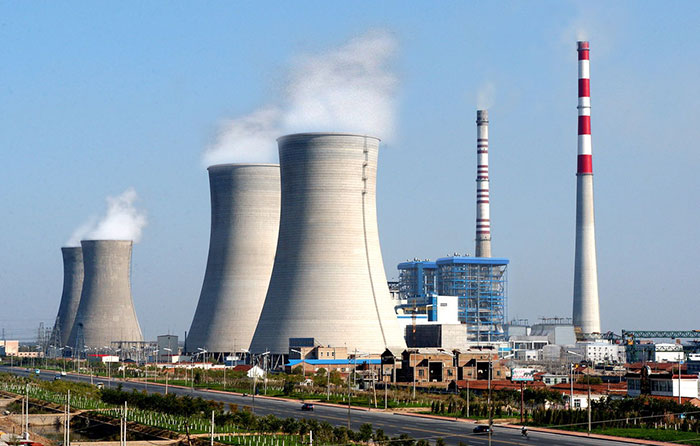

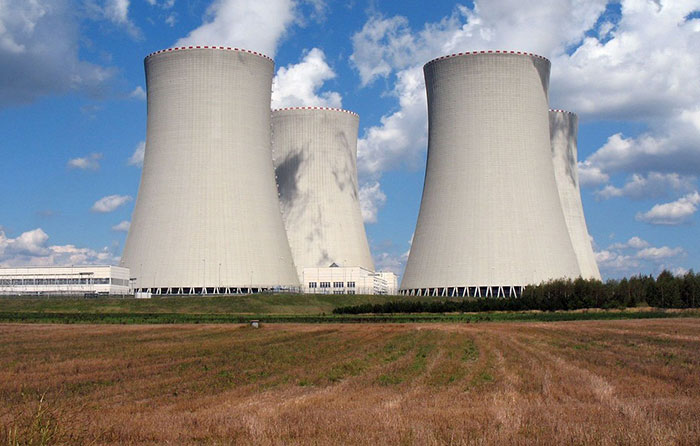

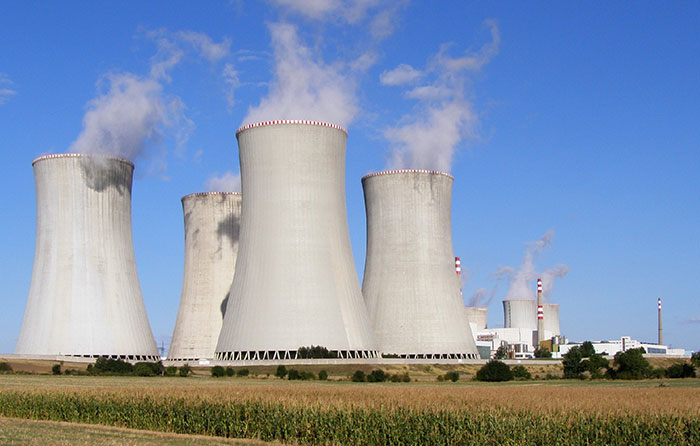

Chimney Liners: Titanium clad plates are used for lining chimneys, providing excellent resistance to the corrosive flue gases generated in power plants.

◆ Flue Gas Desulfurization Units: Employed in FGD units to combat the corrosive environment caused by sulfur dioxide removal processes.

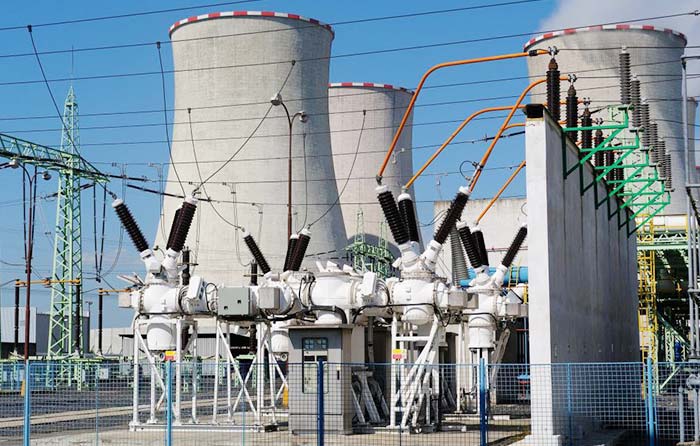

◆ Structural Components: Used in other structural components of power plants where corrosion resistance is critical.

◆ Heat Exchangers and Reactors: Titanium clad plates are excellent for heat exchangers and reactors due to their resistance to corrosion in harsh chemical environments.

◆ Pressure Vessels: Used in pressure vessels, providing robust performance under high pressure and corrosive conditions.

◆ Storage Tanks: Ideal for storage tanks in the petrochemical industry, offering long-term durability and resistance to aggressive chemicals.

◆ Pipelines: Utilized in pipelines for transporting corrosive substances, ensuring long-term reliability and safety.


If you are looking for wholesale titanium clad plates with near-net shape blanks or textured orientations, please contact us today.

Titanium Clad Steel Plate

Titanium clad plates price

Titanium alloy TC4 costs $100 per kilo and TA9 costs $400 per kilo. The reason why titanium alloy products are sold at such a high price is not that the material itself is worth a lot of money. The most expensive titanium alloy sold in the metal market is not more than 600 yuan a kilo. The reason for the high price of titanium alloy products is the high cost of processing them. Titanium is recognised by the machining industry as one of the most difficult materials to machine.

Titanium Clad Steel Plate

Titanium Clad Steel Plate

Titanium Clad Steel Plate


Titanium clad manufacturing process

Hot forging: a forging process carried out above the recrystallization temperature of the metal.

Hot rolling: Rolling process is carried out at temperatures above the recrystallization temperature.

Cold rolling: A rolling process in which the plastic deformation temperature is lower than the recovery temperature.

Annealing: A metal heat treatment process in which the metal is slowly heated to a certain temperature, held for a sufficient time, and then cooled at a suitable rate (usually slowly, sometimes with controlled cooling).

Pickling: The immersion of a manufactured part in an aqueous solution of sulphuric acid, etc., to remove thin films such as oxides from the surface of the metal. It is a pre-treatment or intermediate treatment for electroplating, enameling, rolling, and other processes


KLS

Buy titanium clad Select KLS. titanium steel plates, titanium composite plate, professional manufacturer, supplier, professional R&D, sales of various metal materials, can meet your various needs, to meet the different needs of different customers.

As a trusted titanium clad plates factory, KLS specializes in the production of titanium clad steel plate, titanium composite material, specializing in the production of titanium composite plate, titanium clad pricetitanium clad specificationtitanium clad plates costtitanium clad factory direct sales, we have a lot of stock, that can be customized, welcome to consult, support customization. We have seamless and seamed titanium composite plates, titanium composite clads, titanium composite clads, titanium metal clads and sheets in various sizes, thicknesses and weights available at the supplying factory in accordance with the dimensions of the steel plates proposed by the builder. Steel clad products have been exported to India, Russia, Europe, the United States, the Middle East, Saudi Arabia, Qatar, etc.

Welcome to contact us for advice.
