The Process of Titanium Cladding

Oct. 01, 2023

Titanium cladding is a highly specialized process that involves combining titanium with another metal, typically a corrosion-resistant alloy like stainless steel, to create a composite material. This process is widely used in various industries, including chemical, petrochemical, and aerospace, due to its ability to provide the corrosion resistance and mechanical properties of titanium while keeping costs in check. In this comprehensive guide, we will delve into the intricate process of titanium cladding, exploring its various methods, applications, and the advantages it offers.


 Understanding Titanium Cladding


Titanium cladding is a technique used to bond titanium to another material, often a less expensive or more readily available metal, for specific applications. The primary purpose of this process is to combine the excellent corrosion resistance and mechanical properties of titanium with the strength and cost-effectiveness of other materials, such as carbon steel or stainless steel.


 Materials Used in Titanium Cladding


1. Base Material: This is the primary structural material onto which titanium will be bonded. It can be made of various metals, including carbon steel, stainless steel, nickel alloys, and more. The choice of the base material depends on the specific requirements of the application.


2. Titanium Layer: This is the layer of pure titanium that will be bonded to the base material. It acts as a protective barrier against corrosion and offers the unique properties of titanium, such as low density and high strength.


 Advantages of Titanium Cladding


The process of titanium cladding offers several advantages, making it a popular choice in a wide range of industries:


1. Corrosion Resistance: Titanium is known for its exceptional resistance to corrosion, making it suitable for environments with aggressive chemicals or seawater.


2. Strength and Durability: The combination of titanium with a base material enhances the overall strength and durability of the composite material.


3. Cost-Efficiency: Using titanium only where needed, instead of entirely constructing a component from titanium, helps control costs while maintaining the desired properties.


4. Weight Reduction: Titanium's low density contributes to weight reduction in the final product, which is particularly advantageous in aerospace applications.


5. Biocompatibility: Titanium is biocompatible and is often used in medical devices and implants.

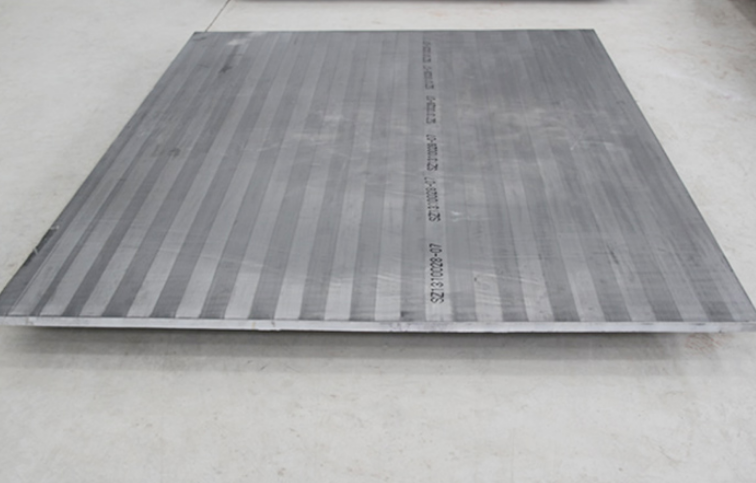

Titanium clad steel plate

Titanium Clad Steel Plate

 Methods of Titanium Cladding


Titanium cladding can be achieved through several methods, each suited to different applications and requirements. The most common methods include:


 Explosive Welding


Explosive welding, also known as explosive bonding, is a process that creates a high-energy impact between the base material and the titanium layer. This impact results in a metallurgical bond between the two materials. The process involves:


- Assembly: The base material and titanium layer are meticulously cleaned and prepared. They are then assembled in a specific configuration.


- Explosive Charge: An explosive material is placed between the two layers, and a detonation is initiated.


- High-Speed Impact: The explosion generates a high-speed impact, causing the materials to collide. This impact leads to the formation of a strong, metallurgical bond.


Explosive welding is often used in applications where a high bond strength is required, such as the manufacture of heat exchangers and pressure vessels.


 Roll Bonding


Roll bonding is a cold-welding process that involves passing the base material and titanium layer through a set of rollers. The pressure exerted by the rollers creates a bond between the two materials. The key steps in roll bonding are:


- Surface Preparation: Both the base material and titanium layer are thoroughly cleaned and prepared to ensure a strong bond.


- Rolling Process: The materials are fed through rollers under high pressure, causing them to bond together. Multiple passes may be required for a complete bond.


Roll bonding is often used in the production of clad plates and sheets for various applications, including chemical processing equipment and offshore structures.


 Hot Isostatic Pressing (HIP)


Hot Isostatic Pressing, or HIP, is a method that involves subjecting the base material and titanium layer to high temperature and pressure in a sealed container. This process results in a diffusion bond between the materials. The steps involved in HIP are:


- Assembly and Encapsulation: The base material and titanium layer are assembled, placed in a container, and sealed.


- Heating and Pressurization: The sealed container is subjected to high temperatures and pressures, causing the materials to bond through atomic diffusion.


HIP is often used in applications requiring a high level of bonding integrity, such as aerospace components and critical parts for the oil and gas industry.


 Applications of Titanium Cladding


Titanium cladding is employed in a wide range of applications across various industries, each harnessing the unique benefits it offers:


 Chemical and Petrochemical Industry


In this industry, the corrosion-resistant properties of titanium are highly valued. Equipment such as heat exchangers, pressure vessels, and reactors benefit from titanium cladding to withstand the corrosive environments present in chemical processing.


 Aerospace Industry


The aerospace sector benefits from the lightweight properties of titanium. Components like aircraft engine parts, landing gear, and structural elements often incorporate titanium cladding to reduce weight while maintaining strength and durability.


 Medical and Pharmaceutical Applications


Titanium's biocompatibility makes it an ideal choice for medical devices, implants, and pharmaceutical equipment. The use of titanium cladding ensures the necessary corrosion resistance and biocompatibility in these critical applications.


 Oil and Gas Industry


Components used in offshore platforms, pipelines, and drilling equipment often require resistance to seawater and harsh environmental conditions. Titanium cladding helps extend the lifespan of these components by providing corrosion resistance.




Titanium cladding is a complex and highly specialized process that brings together the unique properties of titanium with the strength and cost-efficiency of other materials. Whether it's for withstanding corrosive chemicals in the chemical industry, reducing weight in aerospace applications, or ensuring biocompatibility in medical devices, the process of titanium cladding has a wide array of applications.


Understanding the methods and advantages of titanium cladding is crucial in choosing the right approach for specific applications. By combining the corrosion resistance, strength, and other exceptional properties of titanium with the versatility of other materials, titanium cladding continues to play a pivotal role in various industries, ensuring the longevity and reliability of critical components.
