Copper Composite Panel

Copper Composite Panel

Copper composite panel is made of natural copper or natural brass as the skin and aluminum as the back skin, laminated with polyethylene or flame-retardant mineral core to make a copper composite board. Copper composite panel is corrosion resistance and durability .

Overview

Copper composite panel:

Copper composite panel (hereinafter referred to as: CCP) is made of natural copper or natural brass as the skin and aluminum as the back skin, laminated with polyethylene or flame-retardant mineral core to make a copper composite board.

The copper clad plate was born perfectly. It not only has the nature and nobility of copper, but also has the characteristics of lightness and easy processing of the composite board.

Copper composite panel combines the natural beauty of copper with the advantages of composite board, making it a new innovative material for architects.


*Carbon steel as basic metal, cladded with T2 red copper/brass H65/C22000 /CZ101 can be one side cladding or both sides cladding.

*Special technical treatment to merged the two material into a single whole and can not be pilled off

*Thickness combination can be customerized.

*High strength,good electrical and thermal conductivity ,excellent corrosive resistance and extensibility.

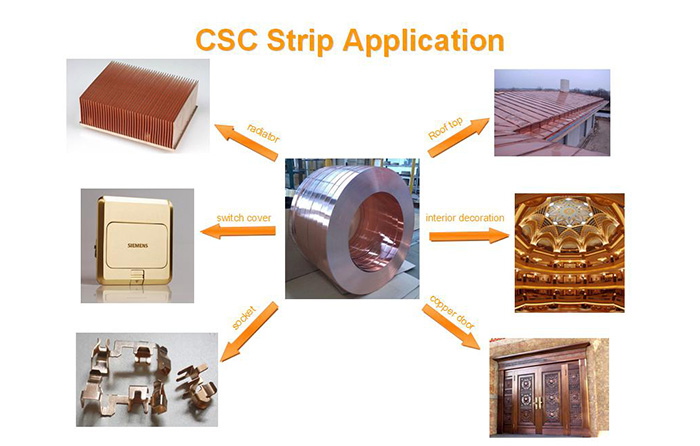

*Applications:Copper façade, electronic spare parts,USB sockets, connectors, automobile radiators, gas heaters, LED spare parts, coins, hardware industries,decoration etc.

*Base layer material: Simple carbon steel / Q195

*Clad layer material: Brass H90 / C22000/CZ101

*Thickness range: 0.2mm ~2.0mm

*Width: 25mm~470mm(If you don't see the size you want, try one of our custom panels!)

*Applications: Bullet shell, Game coin, Indoor decorations etc.

Considering to buy copper clad steel plate with factory supply price, welcome to choose us!

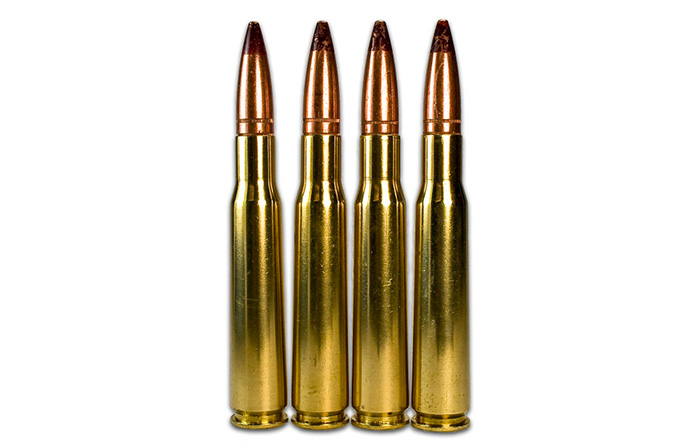

Advantages for bullet shell:

*Ensuring the performance of the bullet

*Saving the brass material,low cost

*preventing the corrosion occur when using or storage

*The lubrication of surface brass can reduce the bullet's wearing to the Chamber

*Excellent cold pressing manufacturability

Features

Clad metal has an excellent property that any single metal can not compare with, these metals make an excellent complement to each other. The biggest advantage of this kind of clad plate is that its materials and thickness can be selected according to the needs of different clients.


◆ The copper composite sheets are extremely strong and have an unparalleled flatness.

◆ They can be manufactured and easily molded to fit any design.

◆ Copper laminate panels can be made flame retardant.

◆ China copper clad steel plate from KLS offer superior aesthetics and a majestic appearance that immediately brings a grand look to the interior and exterior.

◆ Subject to environmental conditions and proper installation, copper veneer may have a life expectancy of over 100 years. It's environmentally friendly.

Copper clad steel plate cost or price is different as to the specific materials and thickness, please feel free to contact us for your special requirements and applications!


Specifications

Mechanical performance:

NoTemperTensile Strength (N/mn2)Elongation (%)Applications
1TM≥280≥45Extremely good extensibility, Suitable for very deep pressing
2M≥290≥33Good extensibility, Suitable for general pressing capabilities
3Y₂350-450≥5With certain degree of extensibility, Suitable for components requiring bending and certain strength
4Y≥460-Suitable for components processed through flat punching or simple bending with requirements for strength
5TY≥650-Very high strength, Fatigue resistance, and electricity


Note:

TM temper: Extreme soft

M temper: Soft

Y₂temper: Semi-hard

Y temper: Hard

TY temper: Extra hard

Uses

KLS Metal Clad Materials Company is a dominant and professional manufacturer in the field of copper clad materials in China. Our key product copper cladding, copper clad aluminum sheet, which has been able to help clients reduce costs and create value in heavy industries like Copper façade, electronic spare parts,USB sockets, connectors, automobile radiators, gas heaters, LED spare parts, coins, hardware industries,decoration.


Copper composite panels have been exported to India, Russia, Europe, the United States, the Middle East, Saudi Arabia, Qatar, etc. Choose from a range of grades, lengths, and custom cuts to suit your project needs. Order today for top-quality products!

Copper Composite Panel

Copper Composite Panel

Copper-Steel Clad Sheet for radiator,swich cover,socket,roof top,interior decoration,copper door and façade



Copper Composite Panel
Copper Composite Panel
Copper Composite Panel
