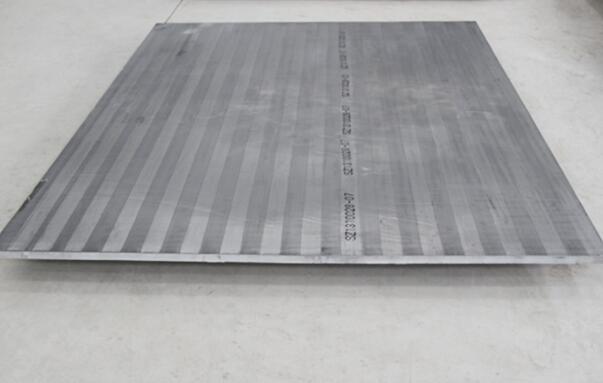

Details about Titanium Clad Steel Plate

Sep. 20, 2022

Overview of Titanium Clad Steel Plate

Titanium steel clad plate: Titanium has superior corrosion resistance and heat resistance, so it has better corrosion resistance than stainless steel or copper alloy and titanium in most cases, especially in seawater. Its application is expanding rapidly from space to land and from land to sea. Therefore, Titanium steel clad plate is an ideal material to replace pure titanium for a better cost effectiveness ratio.Which features a low cost and higher performance.


Details about Titanium Clad Steel Plate


Applications:

Heat exchangers, cryogenic engineering, ocean engineering, petrochemical industry, metallurgical equipment.


Features

Titanium is widely used as a material for various chemical reaction vessels and heat exchangers due to its excellent corrosion resistance, but its disadvantage is its high cost. This problem is particularly prominent when it is used as a structural component. An effective solution is to use a titanium steel composite plate. The composite material of titanium and ordinary steel is called a titanium steel composite material, which has both the corrosion resistance of titanium and the strength of ordinary steel plate as a structural material. It is important that the cost is also greatly reduced.
304 Stainless Steel, Plate 304 Stainless Steel Coil, the most widely used of the stainless and heat resisting steels.Choose our Stainless Steel Clad Plate, you can be get most careful and thoughtful service!


Specifications

Product Name: Titanium Clad Steel Plate:
Cldding Material Scope:

Titanium (Gr1, Gr2, Gr3,Gr5, Gr9,Gr7, Gr11, Gr12, etc),Stainless Steel, Non-ferrous metals (aluminum, copper,nickel, zirconium, tantalum)
Titanium Type of the CladTi-steel clad plate,Ti-stainless steel clad plate,Ti-aluminum clad plate,Ti-copper clad plate,Ti-nickel clad plate
Technique: Explosive welding, Hot rolling
Standard: ASTMB898,  NB/T47002.3-2010
Overall Thickness: 8-120mm
Cladding thickness: 2-15mm
Width: 3000mm or Customizable
Length: 8000mm or Customizable
Surface Treatment: Polished

Why choose Titanium clad steel plate:

Titanium has been widely used in various chemical reaction vessels and heat exchanger materials because of its excellent corrosion resistance, but its disadvantage is high cost. Especially for the use as structural components, this problem is particularly obvious, And the effective solution is the use of titanium clad steel plate. The combination of titanium and ordinary steel is called titanium clad steel plate. It has the corrosion resistance of titanium and the strength of the ordinary steel plate as the structure. What matters most is that the overall cost can be reduced greatly.
